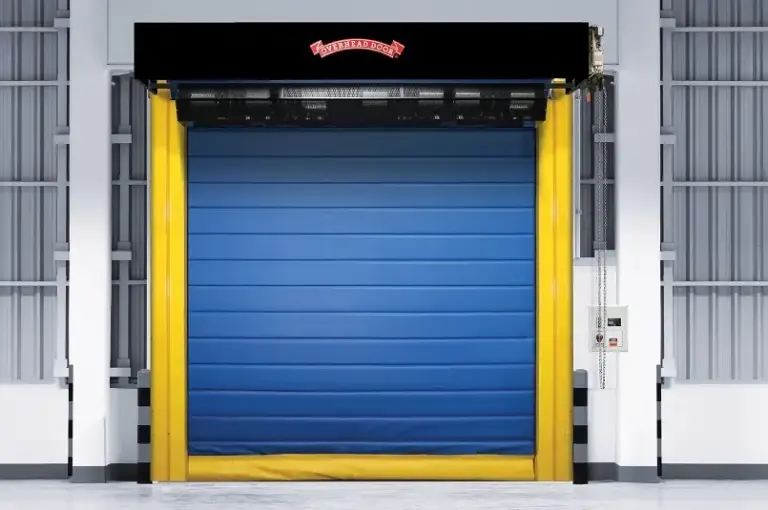

RapidFreeze® 997
Insulated Fabric Garage Doors | Commercial Products
Your preferred store
Options
Colors
Red
Blue
Gray
White
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor. The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Bottom Bar & Guide
Safety Yellow
Features
Features
- Standard max width: 12′
- Standard max height: 18′
- Opening Speed: Up to 80″ per second
- Closing Speed: Up to 40″ per second
- Break-away self-reset: Yes
- Wind Load*: Up to 2.0 psf
- Curtain panel: 2 layers of PVC-coated polyester with 1 layer of polyester weave and conductive plus radiant insulation
- Operation: Direct drive motor and gearbox system with a door stop device
- Control panel: Variable frequency drive – NEMA 4X
cULus listed
Onboard self diagnostic and service reminder
Built-in padlockable field disconnect; Includes power for guide heater and blower - * Pressure/wind resistance value is the ultimate pressure tested at door width of 10′.
Additional Features
Thermal performance
- Iinsulated curtain provides barrier to prevent heat loss and condensation
- Actively heated guides ensure the complete height of the guide has uniform temperature to ensure smooth door movement
- Quad-sealed, insulated guides prevent guide condensation and conditioned air loss around the curtain
Speed
- Opening speed up to 80” per second
Built for tough, high-cycle operation
- Breakaway bottom bar is easily reset from either side of the opening in case of accidental forklift contact
- Springless design requires minimal interruptions for maintenance
- Direct-mounted gear drive system minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
