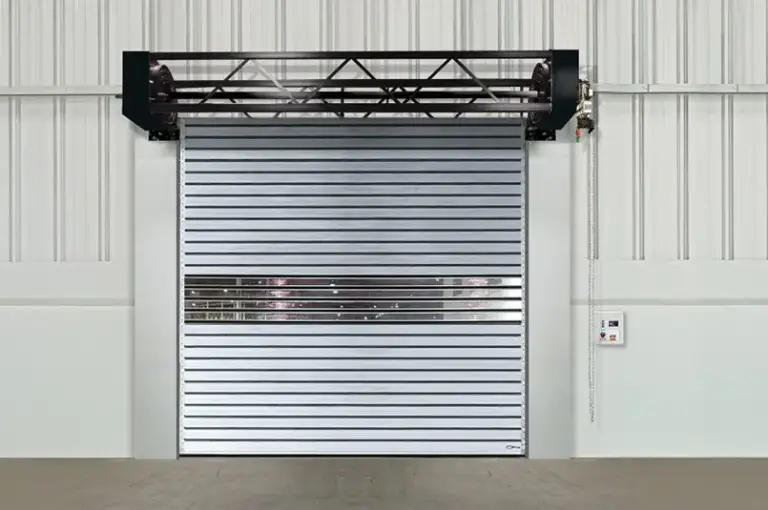

RapidShield® 998
Metal Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Multiple actuation options – push button, motion detector, radio control, key switch, pull switch, loop detector, treadle switch
- Signaling devices – red/green LED warning light, horn/strobe combination, rotating warning light
- Slim guide available to reduce jamb side room
- RapidShield® Model 998 available with scratch-resistant vision slats
- Insulated slat available for RapidShield® Model 998
- Lintel cover
- Photo eyes
- Programmable LED lighting system – 3′ tall light bar with red, yellow, green lighting
- Impact rating in accordance with the Florida Building Commission; certified for Florida’s High Velocity Hurricane Zone
Colors
Standard Exterior Color
Silver
Slats and bottom bar and Guide – Silver powder coat standard. Bracket/hood structure – Black powder coat standard.
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor. Silver powder coat made to mimic anodized aluminum
Powder Coat Color Options
PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
Features
Features
- Standard max width 26′
- Standard max height 21′
- Speed Up to 80″ per second
- Wind Load* Up to 100 psf
- Door material Dual-walled aluminum
- Vision Option Optional scratch-resistant polycarbonate panels
- Perforated Option Optional powder coat-matched perforated slat for 24% open area
- Operation Direct drive motor and gearbox system
- Control panel Variable frequency drive NEMA 4X cULus listed
- Obstruction detection Integrated light curtain
- Reversing safety edge Wireless reversing edge
- Electrical availability 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†; (†requires stand-alone mounted transformer)
- Warranty 5-year limited
- * Pressure/wind resistance value is the ultimate pressure tested at door width of 15′. **Up to 50 psf for RapidShield® Model 998 with optional vision panels.
