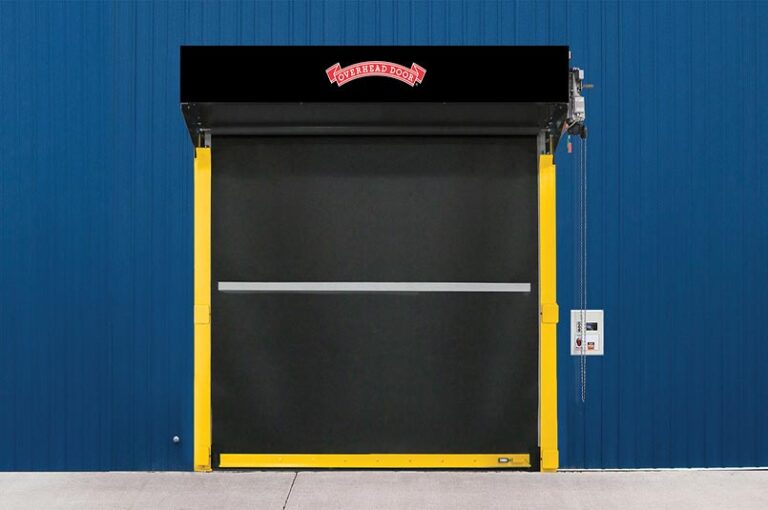

RapidFlex® 995
Rubber Garage Doors | Commercial Products
Your preferred store
Options
Colors
Black
Blue
The standard color for guides, brackets, and bottom bar is yellow. 197 optional RAL powder coat color options are available.
Actual door color may vary from the digital representation shown here. Color samples are available by request through your Overhead Door™ Distributor.
Features
Features
- Standard max width 30′
- Standard max height 30′
- Speed Up to 50″ per second
- Break-away self-reset Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
- Wind Load* Up to 27.0 psf
- Wind strut not available
- Curtain Material 5 layers of NBR rubber; 4 layers of polyester weave
- Vision Option 20” high windows spaced evenly across width of door
- Operation Direct drive motor and gearbox system with a door stop device
- * Pressure/wind resistance value is the ultimate pressure tested at door width of 19′.
- Control Panel Variable frequency drive NEMA 4X cULus listed Onboard self diagnostic and service reminder Built-in padlockable field disconnect
- Obstruction Detection 2 sets of infrared sensor mounted proximity to the door path
- Reversing safety edge Wireless monitored reversing edge
- Electrical availability 208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH† (†requires stand-alone mounted transformer)
- Warranty 5 year limited
- Actuation options push button, key switch, pull switch, motion detector, radio control, loop detector, treadle switch
- Signal device options red/green LED warning light, horn/strobe combination, rotating warning light
- Programmable LED lighting system tall light bar with red, yellow, green lighting
- Light Curtain Front or rear mounted; available in 3′ or 6′ models
Engineered for high cycles
- Springless design for minimal interruption and maintenance
- Direct-mounted gear drive minimizes wear and tear
- Variable frequency drive eliminates sudden jolts from door start/stop
Rugged construction
- Nitrile Butadiene Rubber (NBR) material is multi-reinforced with 5 layers of rubber and 4 layers of polyester weave for added strength without the weight
- Features wind load up to 27 psf at 19’ wide
Patent-pending curtain lock
- Allows door to withstand pressure and makes the door field repair-able
Low maintenance
- Break-away design with impact detection and push button self-repair
- Plug and play wiring (reduces the need for licensed electrician)
