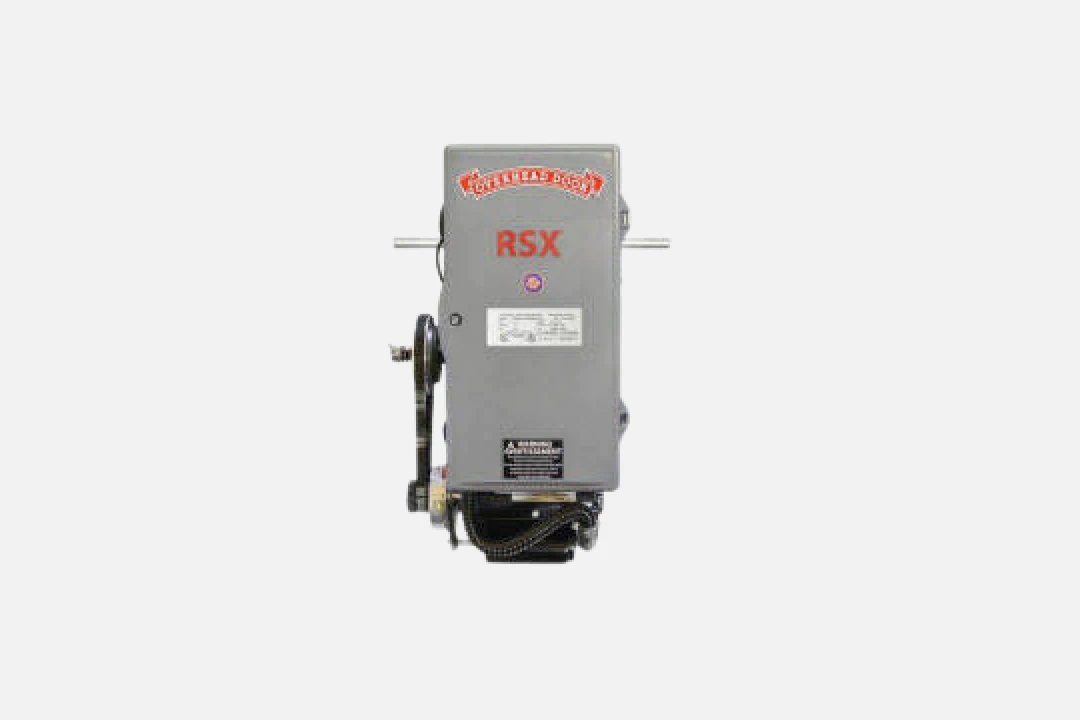

RSX® Operator
Operators | Commercial Products
The UL 325 2010 compliant RSX® standard duty commercial operators provide easy operation with superior functionality for the most stringent applications. This functionality comes from many innovative, state-of-the-art performance features.
Your preferred store
Options
Models
- RSX® Trolley – Sectional Door
- RSX® Jackshaft with and without Hoist – Side/Center Mount on Sectional Door
- RSX® Jackshaft with and without Hoist – Rolling Steel
- RSX® Standard Duty models available in single phase (115/208/230V), three phase (208/230/460V), three phase (575V), and 1/2, 3/4, and 1 HP
- CodeDodger® commercial dual transmitters (optional): Available in 1, 2, 3, 4-button and Open/Close/Stop versions. Automatically operates at both 315 and 390 MHz every time a button is pressed.
Features
- Mounting Rolling steel doors: With or without hoist, front of hood, top of hood, bench mount and wall mount. Hoist models are left or right-hand. Rolling steel models come with brake. Sectional steel doors: Standard, side mount, and dual trolley applications. Side mount and center mount direct couple to the door shaft with or without hoist. Hoist models are left or right-hand. 1/2 horsepower models available with or without brake (3/4 hp and 1 hp models come standard with brake).
- Motor Continuous duty motor available in 1/2, 3/4 and 1 horsepower, single or three-phase. Totally enclosed non-ventilated (TENV) construction, and totally enclosed fan cooled (TEFC) construction units are available as options.
- Advanced radio receiver system with auto seek frequency range Quickly and easily learns up to 250 CodeDodger® transmitters. This system will automatically cycle between 315 and 390 frequencies. It can add and delete transmitters from the menu and easily identify which transmitters are operating the door.
- Drive reduction Primary reduction is SuperBelt®, an auto tension poly-V flex belt that does not require adjustment. Secondary reduction is by chain and sprocket.
- Direct coupling Provides fast, easy installation and prevents chain slacking. Available on sectional side/center mount jackshaft and hoist units.
- Mechanical brake system 24V DC disc brake. Fewer mechanical parts for improved reliability.
- Clutch Adjustable disc-type helps protect door and operator from major damage should the door meet an obstruction.
- Easy installation and trouble-shooting with 16 character LCD display Intelligent menu structure and expanded self-diagnostics including cycle counter functionality.
- Adjustable shaft Output shaft can be moved from one side to the other, providing flexible installation options on sectional side mounting
- Trolley rail assembly High strength 2 inch rolled angle for added strength and durability.
- NEMA 4/4X operators Available for wet, dusty, and corrosive environments.
- Warranty RSX® operator features a 2-year or 20,000 cycle limited warranty.
- Easy limit setting with LimitLock® An electro/mechanical limit sensor that makes it easy to set and maintain limits.
- Voltage freedom with Voltamatic® One unit for single phase voltages (115/208/230V), one unit for three phase voltages (208/230/460V) and one unit for three phase 575V.
- Extra door system durability with Progressive Braking* DC brake system brings the door to a soft stop for less wear and tear on the system.
-
AUXILIARY OUTPUT MODULE
-
TIMER TO CLOSE MODULE
-
MONITORED EDGE INTERFACE MODULE
-
RADIO TRANSMITTERS
-
BOTTOM SENSING EDGE
-
SAFETY BEAMS
-
MONITORED PHOTO-EYE
