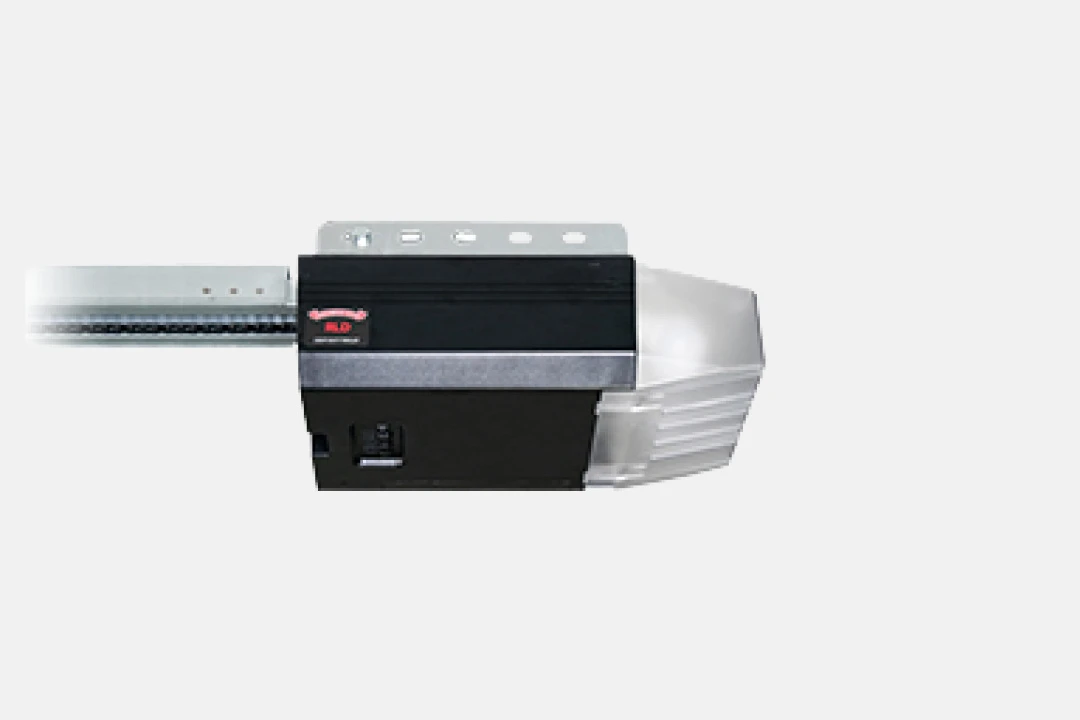

RLD Trolley Door Operator
Operators | Commercial Products
Light-Duty Trolley
The RLD Trolley for sectional doors is designed for standard-lift doors that have up to a 12-cycle/hour and less than a 30-cycle/day requirement. Designed for reliability with leading innovative features, the light-duty trolley sets a new standard in the industry.
Your preferred store
Features
- Easy push to set limits
- UL 325 Listed
- Automatic open and close door force settings
- Pull cord release for emergency manual operation
- Max door height of 14 ft
- Wired wall console included
- 2-year limited warranty
- Commercial photocells
- 7.5 in/sec door speed in both directions in most applicationss
- Can store up to 31 transmitters
Construction
- Motor Quiet, powerful 24 VDC with usage-based thermal shutdown
- Drive Primary — Integrated worm gear in motor Secondary — Internal chain and sprocket
- Emergency Disconnect Draw bar arm disconnection for emergency manual operation
- Pre-wired to accept:
- Single or 3-button control stations
- Monitored photoeyes
- Amperage Rating 120 VAC at 4 A
- Power Cord 6 ft, three prong power cord
- UL 325 Listed: Allows for monitored entrapment protection and momentary operation when used with select monitored entrapment devices
RLD Jackshaft Advantages
- Industry’s strongest 140 VDC motor
- CodeDodger® dual frequency automatically adjusts between 315 and 390 MHz to help avoid remote control interference
- DoorDetect® Monitoring and Diagnostic Technology – Operator force profile detects irregularities in operation of the door to dentify unsafe door operation. The force profile is updated every cycle to account for changes in weather and temperature
- Power on demand gives the operator the ability to adjust output power during key movements of the door’s travel to ensure a smooth and consistent movement.
- Smart illumination lighting positions the 2-bulb lighting system towards the inside of the garage instead of at the door for light where its needed
- Heavy-duty double c-channel rails allow for operation of heavy doors with minimal deflection of the door system
- Sure-Lock™ Control allows for operator lock out when door operation isn’t required. Manually toggled feature on the wired wall console
- Optional battery backup can be added at anytime
Optional Accessories
Battery Backup (P/N: 41590R) Can be easily installed without unmounting the operator.
OHD Anywhere® (P/N: 42185S.S) Operate and monitor the door from almost anywhere via a smart device.
Wireless Wall Console (P/N: 39903R) The wireless wall console programs like a transmitter with none of the wires of the standard wired wall console. Can be installed anywhere in view of the operator with an included jogger button for a delayed door operation in 10, 20, or 30 seconds.
Wireless Keypad (P/N: 37225R) Easy-to-use keypad mounts outside the door to allow for access to the door without a remote control. Back-lit keypad allows button presses to be easy to see, and can control up to 3 different operators.
UL 325 Approved Reversing Devices The installation of a monitored external entrapment device is required for momentary contact close operation on all commercial door operators. The following devices, when purchased through Overhead Door™ Corporation, are UL Approved for use to meet this requirement:
- Safe-T-Beam® Photoeye Kit with adjustable bracket (P/N: 38176R.S)¹
- Impact-protected Commercial Photoeye Kit (P/N: OPAKPE2.S)
- Retro-reflective NEMA 4X Photoeye Kit (P/N: OPRAKRPEN4X.S)
- MillerEdge ME/MT/CPT (DC or T3) 2-wire edge sensor. Must be used with Interface Module (P/N: OPAKMEIX.S)
- Light Curtain 3 ft. length (P/N: OPAKMLC3.S), or 6 ft. length (P/N OPAKMLC6.S). Requires power pack for operation (P/N: 36238A.S)
¹ – Default device when operator is ordered.
