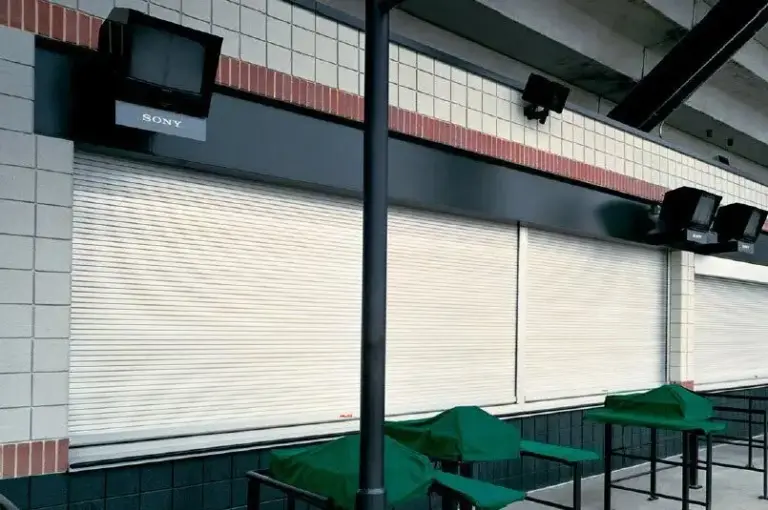

Model 650
Counter Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Crank or electric operation
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification. PowderGuard® Zinc and PowderGuard® Weathered finishes
- Vision lites
- Perforated slats
- Fenestrated slats with uniformly spaced openings of 5/8″ x 3″ (16 mm x 76 mm)
- Guides: 11-gauge roll-formed steel guides
- Cylinder lock
Colors
Standard Exterior Color
Gray
Tan
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification. PowderGuard® Textured finish, a thicker, more scratch resistant coat, is available in 11 colors providing enhanced scratch resistance as well as aiding in hiding the dirt and blemishes that often occur in commercial environments.
Features
Features
- Standard max width 20’0″ (6096 mm)
- Standard max height 9’0″ (2743 mm)
- Curtain Interlocking flat profile slats (F-158) with endlocks; galvanized steel
- Hood Galvanized steel
- Finish Galvanized steel primed with choice of baked-on polyester top coat in gray or tan
- Brackets Steel plate to support curtain, counterbalance and hood
- Guides Extruded aluminum
- Counterbalance Helical torsion springs housed in a steel tube or pipe barrel
- Mounting Face of wall, between jambs
- Operation Manual push up
- Lock Interior slide bolt
- Warranty 24-month limited
