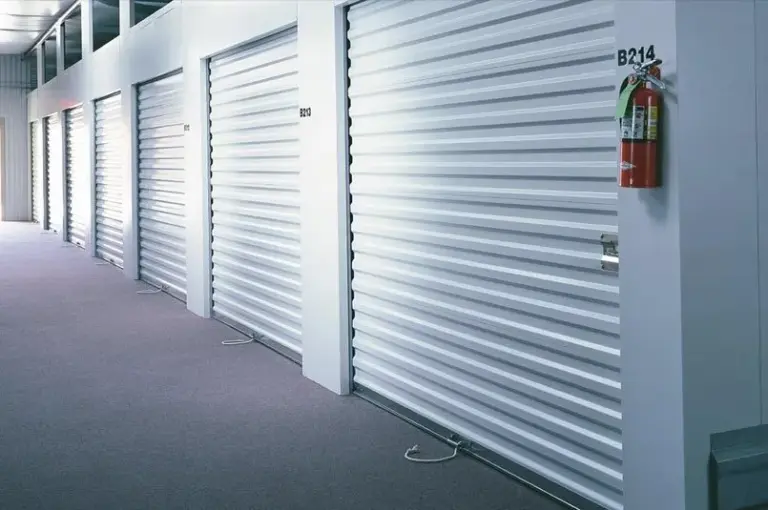

ProStar™ Model 770SS
Rolling Sheet Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Additional exterior curtain slide lock
- Interior bottom bar slide bolt set (left and right-handed)
- Header draft seal
- Wind load: Integrated curtain wind locks and guide to withstand wind load to minimum design pressures of 36/-36 psf (175/-175 kgf/sq m)
Colors
White- Glossy White
Forest Green
Teal
Dark Teal
Walnut Brown
Garnet Red
Polar Blue
Royal Blue
Desert Tan
Bronze
Silhouette Gray
Features
Features
- Standard max width 10′ (3048 mm)
- Standard max height 10′ (3048 mm)
- Curtain 26-gauge, roll-formed, galvanized steel sections interlocked and seamed to form full door height
- Curtain material High strength steel
- Curtain rub strips Flexible webbing on both front edges
- Counterbalance Assembly 9″ (229 mm) steel “stepped” rings to minimize headroom and enhance door operation
- Universal guides 18-gauge, roll-formed galvanized steel, pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs
- Quick-connect headplate 11-gauge steel
- Bottom bar Extruded aluminum reinforced with steel, roll-formed angles
- Quick-connect bottom bar stops 14-gauge galvanized steel
- Bottom seal Bulb-type, astragal seal
- Guide rub strips Polypropylene strips on both edges
- Standard springs 3 3/8″ (86 mm) torsion springs
- Operation Manual push up center handle with side step plate, and center rope attached to bottom bar
- Lock Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) (right or left-handed)
- Exterior/interior finish Paint finish in choice of 12 standard colors: white, glossy white, garnet red, royal blue, polar blue, forest green, desert tan, dark teal, teal, walnut brown, bronze and silhouette gray.
- Standard max width 10′ (3048 mm)
- *Cylinder locks and padlocks not provided
