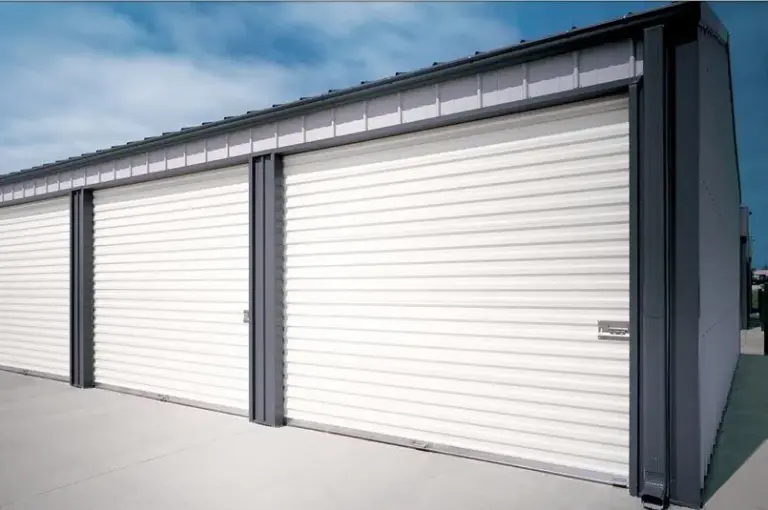

ProStar™ Model 790CW
Rolling Sheet Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Electric operator (Model RMX®)
- Chain hoist with reduced drive, non-handed quick-connect components (standard on some 790CW doors, depending upon size)
- Exterior curtain slide lock (accepts cylinder lock or 2 padlocks*) (right or left-handed)
- Jamb extension brackets
- Full length angle jamb brackets
- Header draft seal
*Cylinder locks and padlocks not provided
Colors
White- Glossy White
Forest Green
Teal
Dark Teal
Walnut Brown
Garnet Red
Polar Blue
Royal Blue
Desert Tan
Bronze
Silhouette Gray
Features
Features
- Standard max width 20′ (6096 mm)
- Standard max height 16′ (4877 mm)
- Curtain 26-gauge, roll-formed galvanized steel sections interlocked and seamed to form full-door height with curtain wind locks
- Curtain material High strength steel
- Curtain rub strips Flexible webbing on both front edges
- Counterbalance Assembly 12″ (305 mm), steel stepped rings to minimize headroom and enhance door operation
- Wind load Integrated curtain wind locks and guide to withstand wind load to minimum design pressures of 22/-22 psf (107/-107 kgf/sq m)
- Universal guides 14-gauge, roll-formed galvanized steel with pre-punched through-hole design for mounting to concrete, masonry, steel or wood jambs
- Headplate 11-gauge steel
- Bottom bar Extruded aluminum reinforced with steel, roll-formed angles
- Quick-connect bottom bar stops 12-gauge galvanized steel
- Bottom seal Bulb-type, astragal seal
- Guide rub strips Polypropylene strips on both edges
- Standard springs 3 3/8″ (86 mm) torsion springs
- Operation Manual or non-handed reduced drive chain hoist (depending on door size) with quick-connect components
- Lock Interior bottom bar slide bolt set (left and right-handed)
- Exterior/interior finish Paint finish in choice of 12 standard colors: white, glossy white, garnet red, royal blue, polar blue, forest green, desert tan, dark teal, teal, walnut brown, bronze, and silhouette gray.
