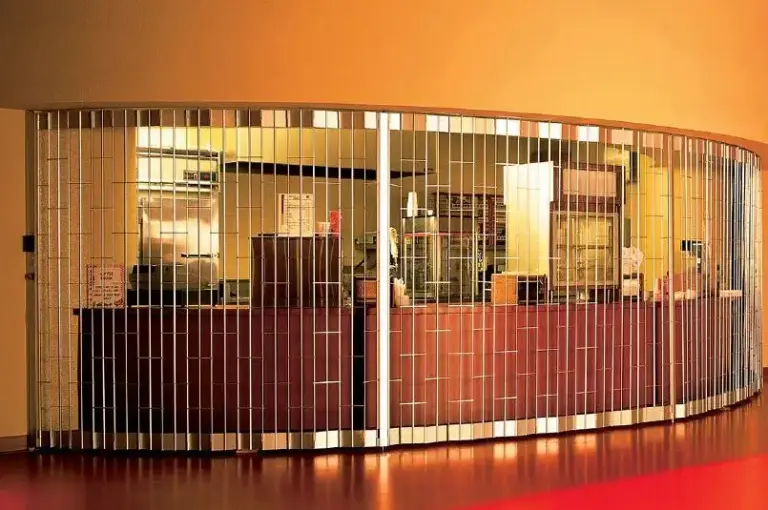

Model 681
Side Folding Security Grilles | Commercial Products
Your preferred store
Options
Door Options
- Thumb-turn guards and protection bars
- Anodized finish
- Vertical adjustment upward or downward
- Emergency Egress Door
Door Patterns
Model 681 Standard Body
Straight Pattern Brick Pattern
- Space between tubes 2 15/16” (73.5 mm)
- Full panel width 7” (178 mm)
- Top plate 4 (102 mm)
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Spacer plate 1” (25.4 mm); 11 gauge
- Spacer tube ½” (12.7 mm) x 12” (305 mm)
- Bottom plate 4” (102 mm)
Model 681 Slim Body
Brick Pattern Straight Pattern
- Space between tubes 1 9/16” (40 mm)
- Full panel width 4″ (102 mm)
- Top plate 4” (102 mm); 11 gauge
- Top spacer tube size varies from curtain pattern to accommodate specific height.
- Spacer plate 1” (25.4 mm)
- Spacer tube ½” (12.7 mm) x 12” (305 mm)
- Bottom plate 4” (102 mm)
Features
Features
- Operation Manual unless size requires chain hoist
- Curain frame Truss-like aluminum top and bottom plates; 1/8” (3 mm) thick
- Panel width 7” (178 mm) standard body; 4” (102 mm) slim body
- Finish Aluminum clear anodized
- Trolley Assembly 1 1/8” (29 mm)
- Track Detail Top-mounted, heavy-duty aluminum sections Height: 1 5/8″ (41 mm) Width: 1 3/8″ (35 mm) Track curves and radius90°: Standard Body: 14″ (356 mm)Slim body: 10” (254 mm) radius120°, 135° and 150°; Standard and Slim body: 10″ (254 mm) radius
- Post Types Lead post Hook lock and wall channel; bi-part; top and bottom shoot bolts Intermediate post Bottom shoot bolt Trailing end post Traveling; fixed; hook lock and wall jamb; top and bottom shoot bolts; carrier
- Locking Mechanisms Lead post Concealed cylinder-operated hook lock accessible from interior and exterior Intermediate post Concealed cylinder-operated shoot bolt accessible from one side only Trailing end post Attached 10’ max. (3048 mm) protection plate self-locking into a steel V-Stop
- Warranty 24 month OEM limited
