Model 671

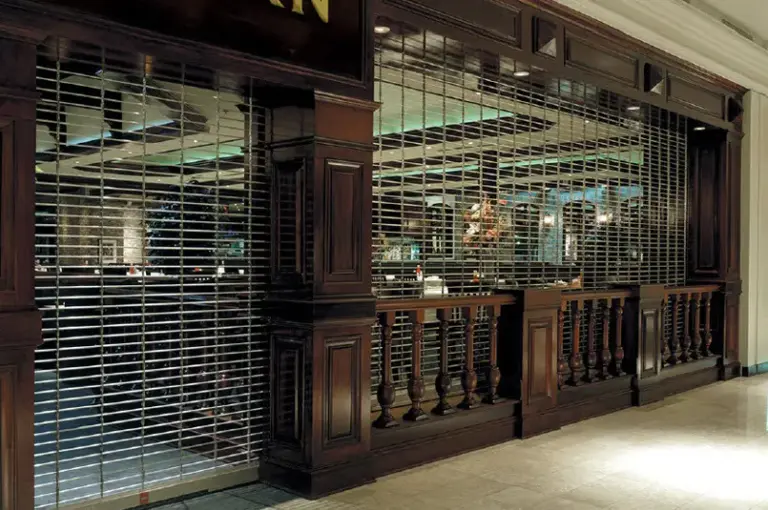

Upward Coiling Security Grilles | Commercial Products
Your preferred store
Options
Door Options
- Operation: Electric operator, chain hoist, removable awning crank or crank box
- Electric operator with automatic emergency egress; compliant with IBC 1008.1.4.4 & NFPA 101
- Controls: Time clock, card reader, keypad access
- Hood: Primed galvanized or stainless steel, mill finished or clear anodized aluminum
- Fascia and back hoods: aluminum, stainless steel
- Optional guide finishes: clear or bronze anodized, stainless steel
- PowderGuard® premium powder coat paint finish in approximately 200 colors as well as custom matching to specification available on hood, curtain, bottom bar, guides, headplates
- PowderGuard® Zinc and PowderGuard® Weathered finishes
- Heavy usage package
- Locking options include cylinder locks, slide bolts, security rods, interlocks
Colors
Powder Coat Color Options
PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification available on hood, curtain, bottom bar, guides, headplates. For a smooth, durable finish consider powder coat to match aluminum clear or bronze anodized.
PowderGuard® Weathered finish, a thicker, industrial textured powder coat, is available in 11 colors providing enhanced scratch resistance as well as aiding in hiding the dirt and blemishes that often occur in commercial environments.
Features
Features
- Operation Manual unless size requires chain hoist
- Curtain Material / Finish galvanized steel or optional stainless steel (2B or 4) Panel Width straight lattice (standard); staggered brick; straight with polycarbonate panels
- Bottom Bar Double angle steel
- Guide Type Guide channels are extruded aluminum with continuous wear strips; mill finish; Wall angles and any pack-out angles are galvanized steel
- Mounting Interior face of wall is standard Between jamb options available
- Brackets Steel with black powdercoat finish
- Pipe Steel sized for maximum deflection of .03” per linear foot
- Springs Oil tempered, 20,000 cycle, torsion springs
- Locking Slide bolt for manual and crank operation; chain lock for chain hoist operation
- Warranty 12 month limited
