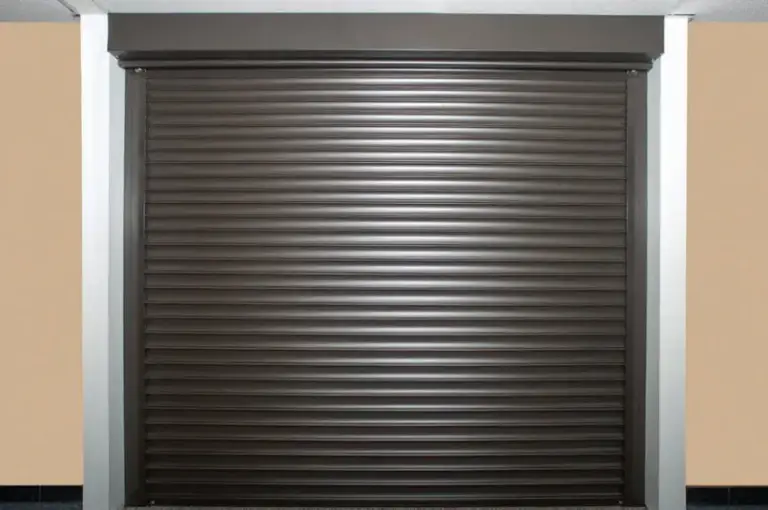

Allura® 653
Shutter Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Step angle bottom bar attachment
- Electric tube motor or crank operation
- Slide bolts (exterior; non-coil side) suitable for use with padlocks; left and right slides (requires interlock with tube motor operation)
- Cylinder lock (requires interlock with tube motor operation)
- Interlock micro switch
- PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
- Open fenestration 1″ x 1″ uniformly spaced openings, full curtain, 24% open area.
- Open perforation full curtain, 22% open area.
- Partial fenestration 1″ x 1″ uniformly spaced openings (Indicate height of curtain segment to be fenestrated).
- Partial perforation (Indicate height of curtain segment to be perforated).
Colors
Standard powder coat finish
White
Almond
Silver
Bronze
Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.
Powder Coat Color Options
PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
Features
Features
- Standard max width 20′ (6096 mm)
- Standard max height 14′ (4267 mm)
- Mounting Face-of-wall or between jambs mounting
- Curtain Interlocking extruded .05″ aluminum slats. Nickel plated, steel screws and end locks to retain curtain within guides and prevent lateral movement. Plastic roller retainers for curtains over 16′ wide.
- Finishes Silver powder coat to mimic look of clear anodized aluminum; Bronze powder coat to mimic look of bronze anodized, White or Almond
- Bottom Bar Aluminum compact bottom with vinyl bulb seal
- Brackets Steel plates powder coated to match curtain
- Hood Aluminum 2 piece square hood powder coated to match curtain
- Counterbalance Extruded aluminum barrel housing counterbalance spring assembly
- Operation Manual push up
- Locking Slide bolts (interior, coil side);left and right sides
- Warranty Limited 2 year warranty for all parts, components and PowderGuard® Premium powder coat finish
