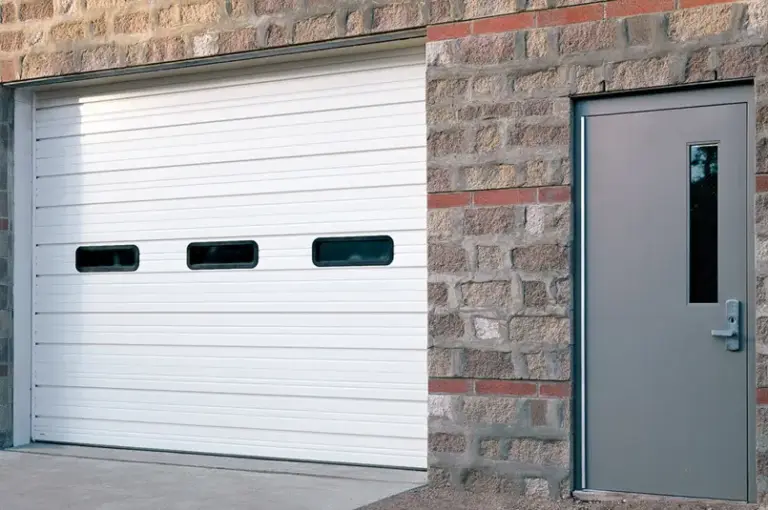

Model 420
Steel Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Bottom sensing edge
- Full sash section with 1/8″ (3 mm) DSB, insulated; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic
- Individual lites with 1/8″ (3 mm) DSB; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic; 1/8″ (3 mm) and 1/4″ (6 mm) polycarbonate; 1/8″ (3 mm) and 1/4″ (6 mm) tempered; 1/4″ (6 mm) wired
- 3″ (76 mm) track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2″ (51 mm) or 3″ (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Impact Section Available
Features
Features
- Standard max width 31’2″ (9500 mm)
- Standard max height 24’1″ (7341 mm)
- Warranty 1 year limited
- Nominal thickness 2″ (51 mm)
- Exterior steel 20-gauge galvanized steel
- Exterior surface Ribbed
- End stiles 16-gauge steel
- Center stiles 16-gauge steel
- Standard mounting Angle mount
- Standard track 2″ (51 mm)
- Standard springs 10,000 cycle
- Weather Stripping Flexible PVC bottom with retainer
- Operation Manual pull rope
- Finish White baked on-polyester
- Lock Interior mounted slide lock
