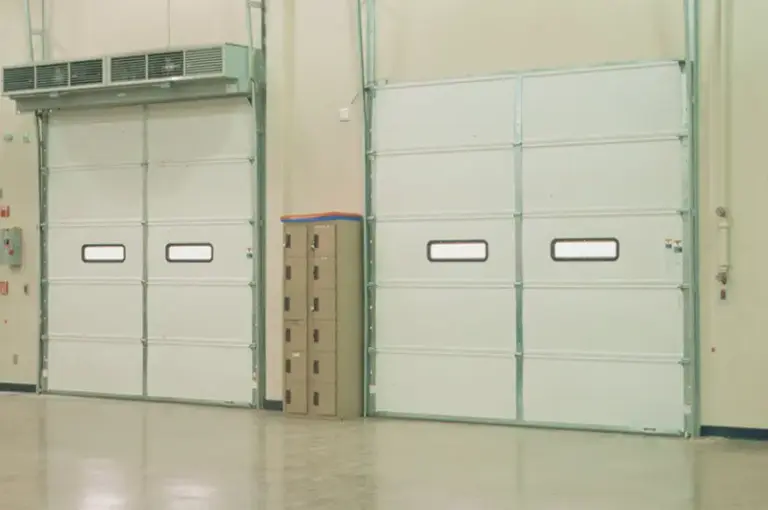

Model 426
Steel Garage Doors | Commercial Products
Your preferred store
Options
Door Options
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Bottom sensing edge
- Full sash section with 1/8″ (3 mm) DSB, insulated; 1/8″ (3 mm) and 1/4″ (6 mm) acrylic
- Individual lites with 1/2″ (13 mm) DSB
- 3″ (76 mm) track
- Bracket mounting (not available on full vertical door tracks)
- Higher-cycle springs in 25k, 50k, 75k, 100k cycles
- Exhaust ports
- Jamb weather seals
- Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
- Reinforcing struts of roll-formed, galvanized steel
- Movable center posts for 2″ (51 mm) or 3″ (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
- Tumbler keyed lock
- Window Glazing Options
- Warehouse Package – Quick install system available
- Impact Section Available
Colors
Exterior Color
White
Industrial Brown
Actual door color may vary slightly from the digital representation above.
Features
Features
- Standard max width 28’2″ (8585 mm)
- Standard max height 24’1″ (7341 mm)
- Warranty 1 year limited
- Nominal thickness 2″ (51 mm)
- Insulation Expanded polystyrene
- R-value 7.35 (1.29 W/Msq)
- Exterior steel 24-gauge galvanized steel
- Exterior surface Ribbed
- End stiles 16-gauge steel
- Center stiles 16-gauge steel
- Interior color White
- Back cover 26-gauge galvanized steel (poly-bonded laminate, high impact polystyrene (HIPS) backed optional)
- Standard mounting Angle mount
- Standard track 2″ (51 mm)
- Standard springs 10,000 cycle
- Weather Stripping Standard on bottom
- Operation Manual pull rope
- Finish White or Industrial Brown baked-on polyester
- Lock Interior mounted slide lock
