Thermacore® Model 596
Thermacore Doors | Commercial Products

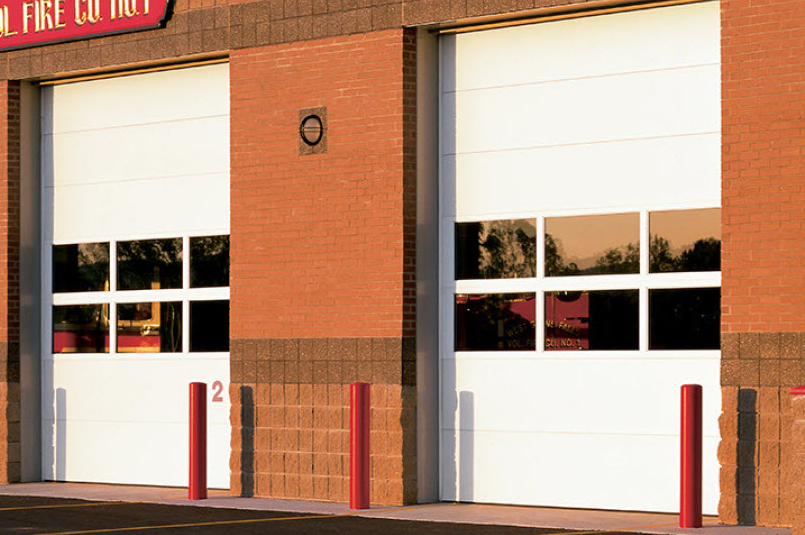

The Thermacore® Sectional Door Model 596 is ideal for extra heavy-duty applications where both thermal efficiency and sound suppression are desirable. The 596 is constructed of 20-gauge galvanized steel with a flush, textured finish. The sectional steel door model 596 incorporates the Thermacore® steel-polyurethane-steel panel construction, which provides a thermal barrier to withstand harsh climates and demanding environmental requirements.
Your preferred store
Door Options
- Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
- Aluminum sash section available up to 24’2″ (7,366 mm) wide
- Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
- Four-section pass door
- High-usage package
- Wind Load options
- Electric operator
- Chain hoist
- Posi-Tension™ drums
- Safety bottom fixture
- Bottom-sensing edge
- Flexible jamb, header seal
- Exhaust ports
- Window Glazing Options
- Impact Section Available
Colors
Exterior Color
White
Gray
Tan
Industrial Brown
Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.
Features
- Standard max width 36’2″ (11,024 mm)
- Standard max height 24’1″ (7,341 mm)
- Panel thickness 2″ (51 mm)
- U-factor*.10
- R-value** 17.4 (3.06 W/m2)
- Sound Transmission Class 26 Ideal for applications that require sound control
- Air infiltration at 15 mph (24 kmph) .08 cfm/ft2 (1.46 m3/hr/m2)
- *U-factor values are independently tested and verified per ANSI/DASMA 105. **Overhead Door™ uses a calculated door section R-value for our insulated doors.
- Thermal break PVC
- Exterior Steel 20-gauge galvanized
- Exterior Surface Flush, textured
- Standard Springs 10,000 cycles
- Warranty 10 year limited delamination 1 year limited on door 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door™ uses a calculated door section R-value for our insulated doors.
