Courtyard Collection®
Steel Doors | Residential Products

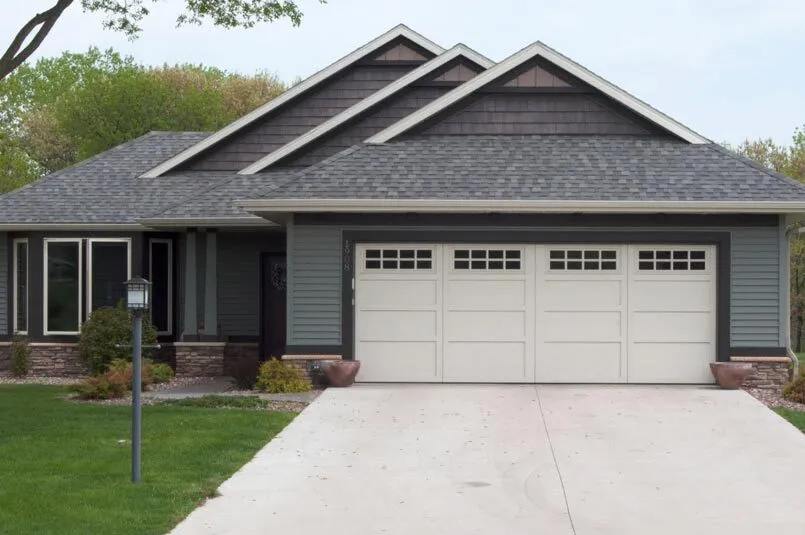

Our Courtyard garage doors are made with an insulated steel construction and fashioned to resemble the elegant wood designs of traditional carriage house doors. They have the beauty of wood, the durability of steel and a classic design to enhance the architectural beauty of your home. Choose from a broad selection of windows and hardware options to further customize the look of your garage door.
Courtyard Collection® garage doors give you the beauty of wood with the durability of steel. Each garage door model provides varied design options to complement any home. These garage doors offer superior insulation with a U-factor as low as .15 (R-value of 12.76) and a variety of colors, windows and decorative hardware. The wood grain textured trim boards are resistant to dents and the elements. The insulated steel construction of these garage doors are fashioned to resemble the elegant wood designs of traditional carriage house doors.
The Carriage House® Collection offers Wind Load options to protect your garage door from high-wind speed!
Your preferred store
Door Designs
Models 7520 / 7560
7520 / 7560 (371T/161T) Horizontal Overlays H1
7520 / 7560 (371M/161M) Horizontal Overlay H2
7520 / 7560 (371A/161A) Horizontal Overlays H
7520 / 7560 (373T/163T) Vertical Overlay C5
7520 / 7560 (375T/165T) A Shaped Overlays A
7520 / 7560 (375B/165B) A Shaped Overlay A2
7520 / 7560 (377T/167T) X Shaped Overlay X
7520 / 7560 (371T/161T) Horizontal Overlays H1
7520 / 7560 (371M/161M) Horizontal Overlays H2
7520 / 7560 (371A/161A) Horizontal Overlays H
7520 / 7560 (373T/163T) Vertical Overlay C5
7520 / 7560 (375T/165T) A Shaped Overlay A
7520 / 7560 (375B/165B) A Shaped Overlays A2
7520 / 7560 (377T/167T) X Shaped Overlays X
Models 7560
7560 (162Z) Vertical Overlay C2
7560 (162E) Vertical Overlay C4
7560 (161B) Horizontal Overlays H3
7560 (162A) Horizontal & Vertical Overlay E2
7560 (164A) Horizontal & Vertical Overlays E3
7560 (166B) V Shaped Overlay V2
7560 (166E) V Shaped Overlay V2
7560 (162ZT) Vertical Overlays C2
7560 (162E) Vertical Overlays C4
7560 (161B) Horizontal Overlays H3
7560 (162A) Horizontal & Vertical Overlay E2
7560 (164A) Horizontal & Vertical Overlay E3
7560 (166B) V Shaped Overlays V2
7560 (166T) V Shaped Overlay V
7560 (167E) Diagonall Overlay C4
7560 (167B) Diagonal Overlay X2

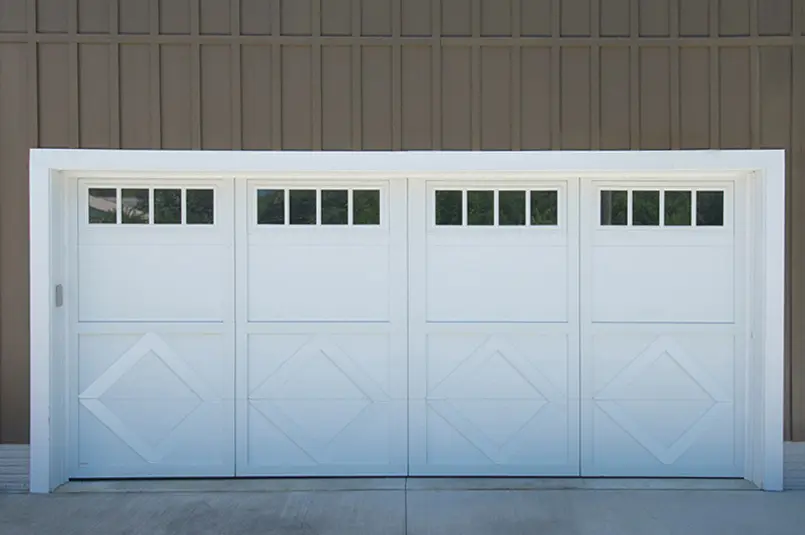

7560 (168B) Vertical Overlay D
7560 (166T) V Shaped Overlay V
7560 (167B) Diagonal Overlay X2
7560 (168A) Vertical Overlay D
7569 (169) Custom**
**Drawings shown are for 7′ high doors. Please consult your Overhead Door™ Distributor for a drawing before making selection if your door is over 7′ high as the panel design may vary. Your Overhead Door™ Distributor can assist you in creating the perfect custom-designed door.
The panel designs shown above are for 7’ high doors. Please consult your distributor for a drawing before making your selection if your door is over 8’ high as the panel design may vary.
Models in the 7560 (160) series have a U-factor of .15 (R-value of 12.76) and models in the 370 series have a U-factor of .20 (R-value of 9.31).
Colors
The Courtyard Collection® garage doors are available in nine standard colors or can be painted to match your home’s décor. Color selections may not be available for some models. Door overlays and window trim are available in the colors shown or can be painted to match your home’s décor (additional charges may apply.) The 7560 (160) series garage doors can be painted solid or two-tone. The 7520 (370) series in only available with white trim.
- White
- Almond
- Desert Tan
- Sandstone
- Brown*
- Terra Bronze*
- Forest Green*
- Gray*
- Black*
*Only available on Model 7560 (160 series). Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor.
Features
- U-factor* 7560 (160) series: .15 7520 (370) series: .20
- R-value** 7560 (160) series: 12.76 7520 (370) series: 9.31
- Insulation Polyurethane
- Track 7560 (160) series comes standard with commercial track 7520 (370) series: comes standard with residential track; commercial is optional
- Ball Bearing Rollers
- Nylon Wheels
- Door Thickness 7560 (160) series: 1 3/8″ 7520 (370) series: 1″
- Overlay Thickness 7560 (160) series: 3/4″ 7520 (370) series: 3/8″
- Wood-grain trimWeather proof textured trim boards
- Color matched trim Trim can be matched to the color of the door to further enhance the look of your home
- Warranty 7560 (160) series: Limited lifetime warranty on door. 7520 (370) series: 20 Year limited warranty on door. Residential Garage Door and Opener System Limited Warranty (when purchased together) – features 3 years on components (see warranty for details)
- *U-factor values are independently tested and verified per ANSI/DASMA 105. **Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.
Wind load
Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.
Garage Door Windows
Window Styles
Clear Long
Stockbridge
Stockton
Stockton Arch

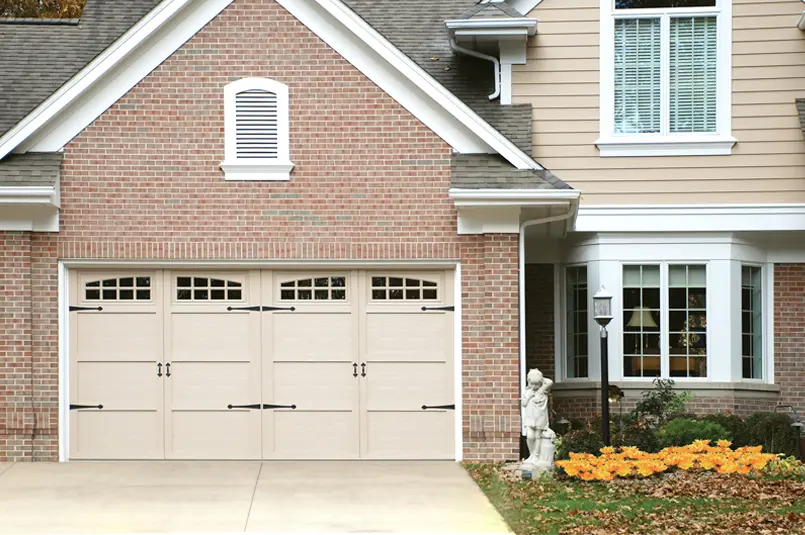

Somerton
Wyndbridge
Glass Options
A variety of glass options are available including: clear, obscure, and satin.
Clear
Obscure
Satin
Garage Door Hardware
Choose from a variety of decorative handles and hinges to further individualize your garage door. Contact your Overhead Door™ Distributor for additional decorative hardware options.
Premium Collection
Value Collection
