Thermacore® Insulated

Steel Doors | Residential Products

Thermacore^® Collection insulated steel doors are the ideal choice for premium construction and maximum thermal efficiency. This series of doors feature our sandwich construction of steel-polyurethane-steel as well as between-section seals with thermal breaks to reduce air infiltration. With several panel designs to choose from, these doors offer design flexibility, durability and thermal efficiency that will help keep your home comfortable in cold or hot climates.

These premium insulated garage doors deliver maximum thermal efficiency and design flexibility. These garage doors keep design in mind and add comfort to your home by providing protection from air infiltration and temperature changes.

Thermacore^® Collection insulated steel doors also provide a Wind Load option to protect your garage door from hurricane like winds!

Your preferred store

Seattle, WA

(866) 618-3667

Request Quote

Seattle, WA

(866) 618-3667

Request Quote

Print This Page

Design Your Own Door

Door Designs

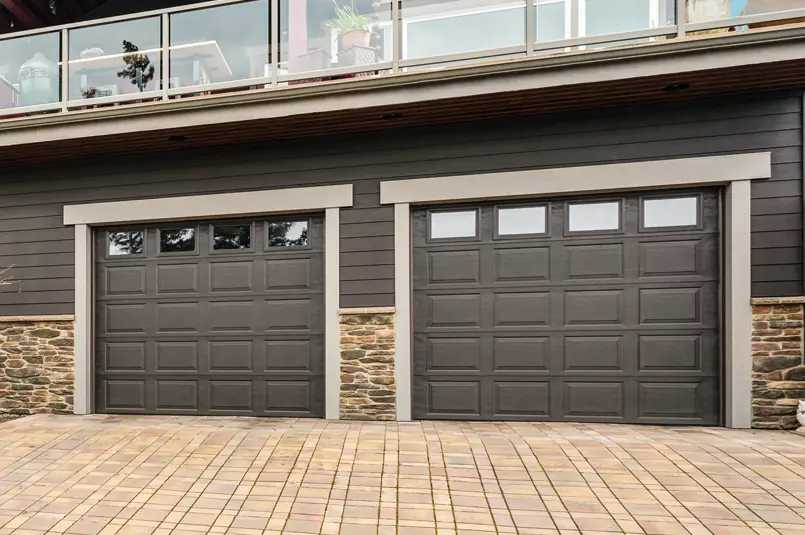

Standard:
5740 (194) 5720 (297) 5760 (494)

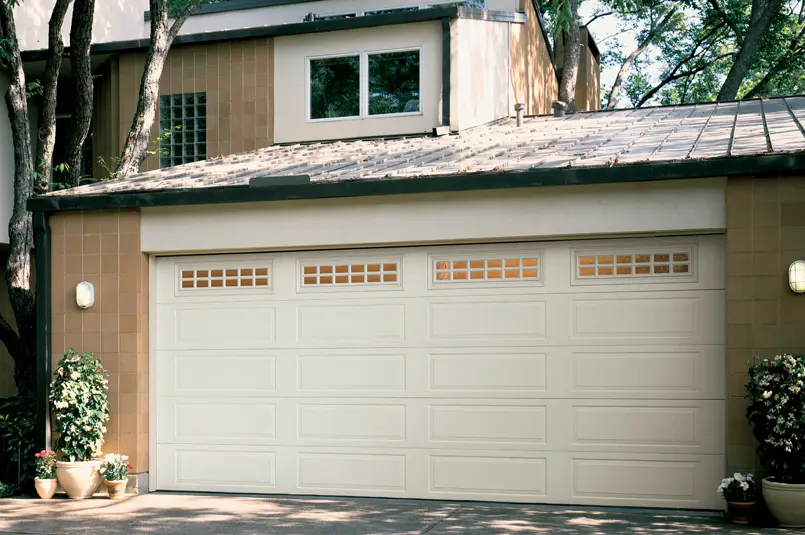

Long:
5740 (198) 5720 (295) 5760 (496)

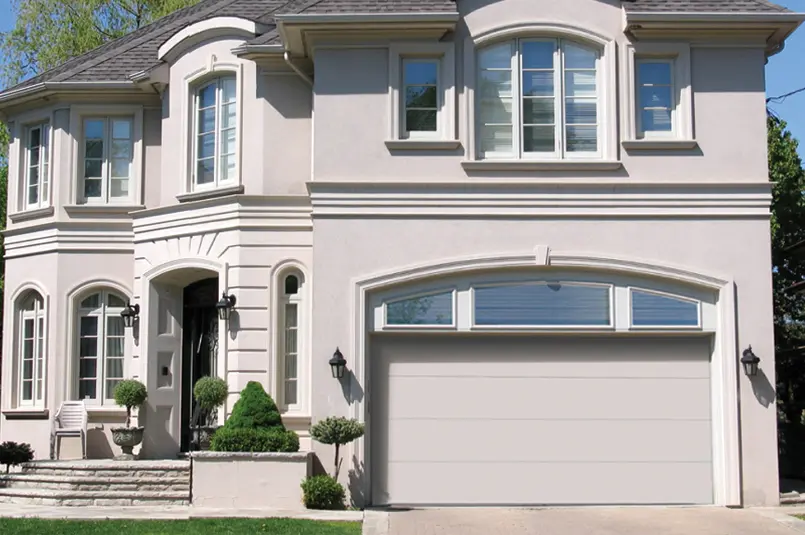

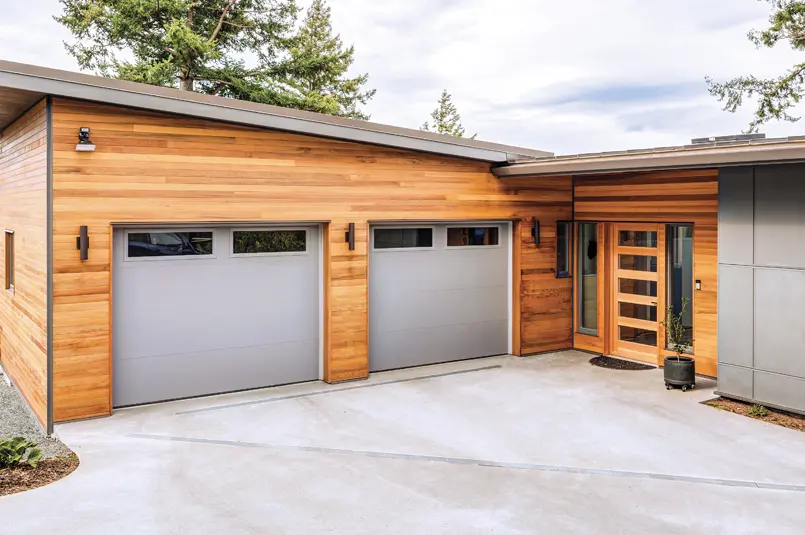

Flush:
5740 (195) 5720 (298) 5760 (495)

insulated-garage-door-vertical-short-panel

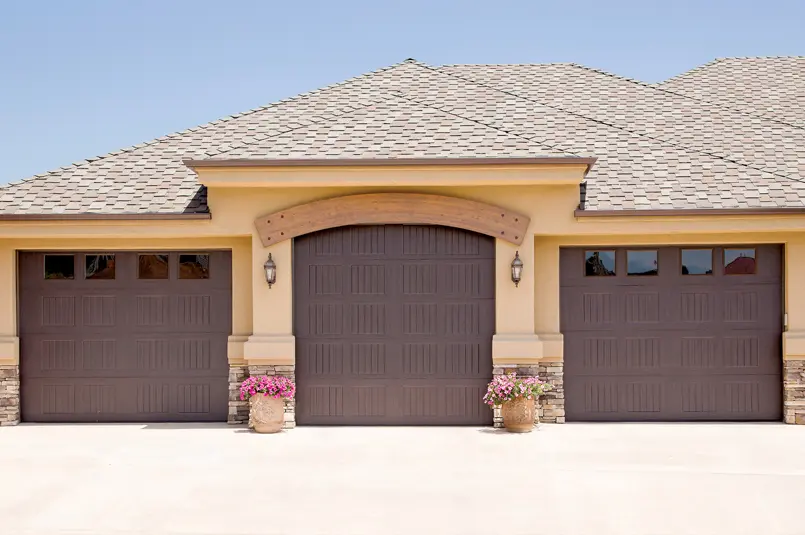

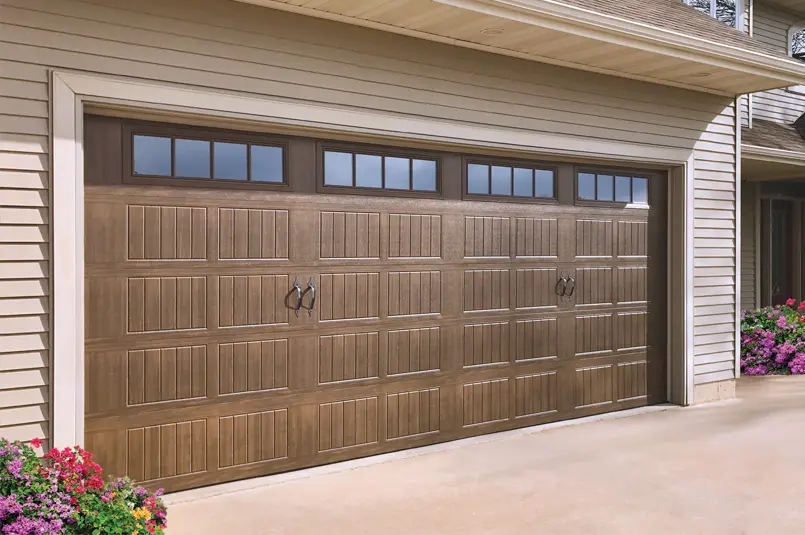

Vertical Short:
5740 (199) 5720 (296) 5760 (497)

insulated-garage-door-vertical-long-panel

Vertical Long:
5740 (192)

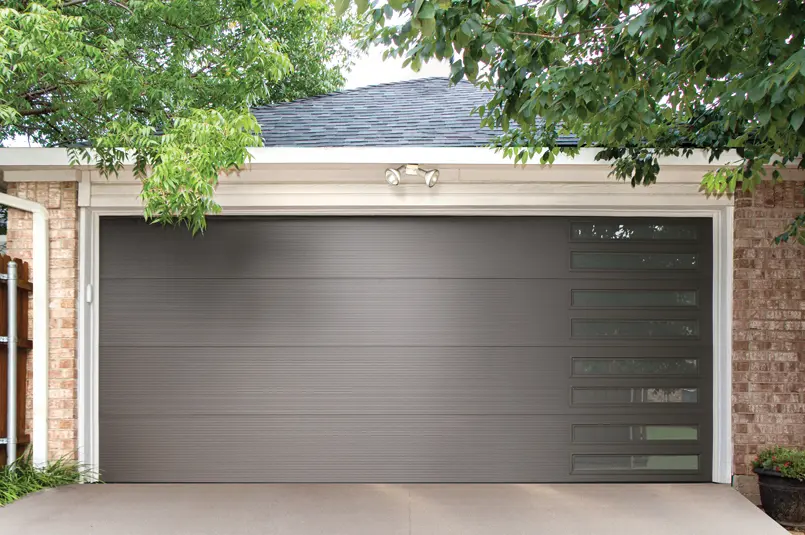

Microgroove:
5740 (196)

Colors

Painted finishes

White
Almond
Desert Tan
Sandstone
Brown
Terra Bronze
Forest Green
Gray
Black

Artisan wood grainTM finishes (only available for Model 5740)

Beachwood Plank

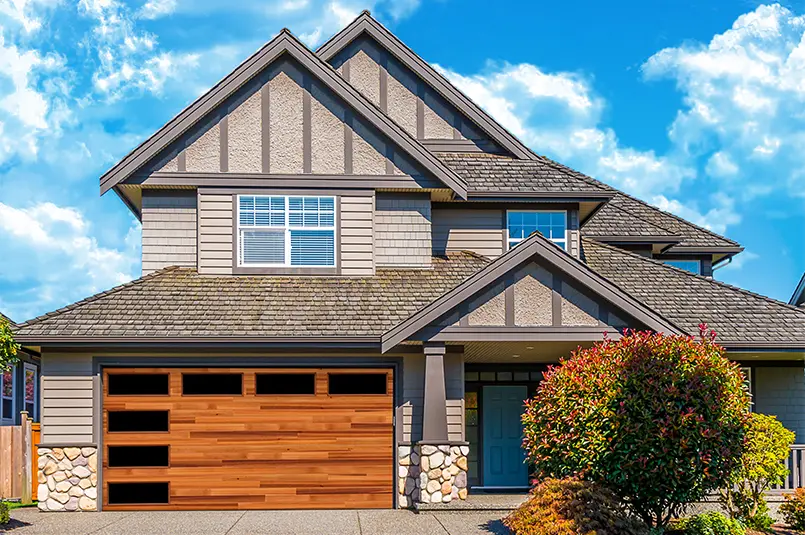

Cedar Plank

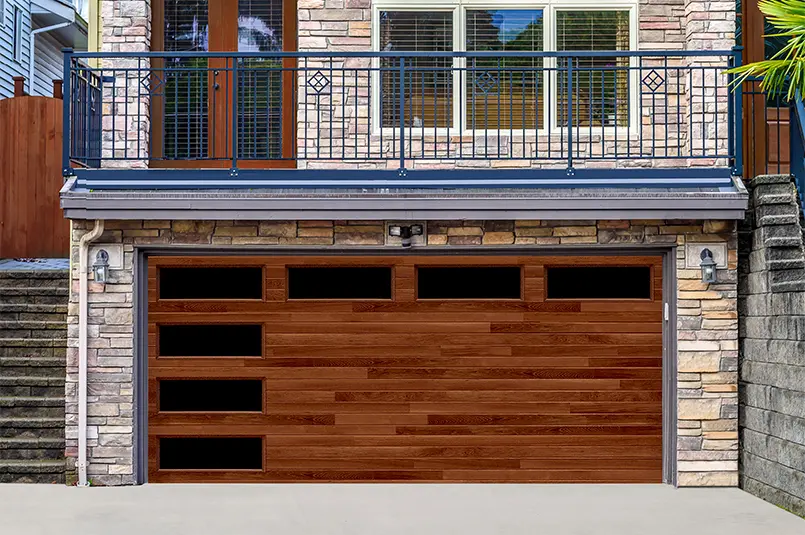

Medium Oak Plank

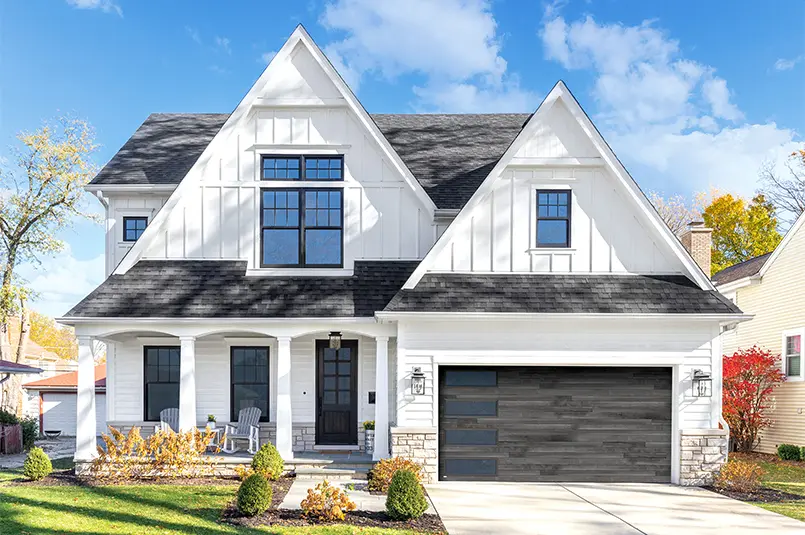

Carbon Oak Plank

Textured wood grain finishes

Golden Oak
Walnut
Mission Oak

Modern Metallic Finishes

Silver
Black Frost
Dark Bronze

Actual door color may vary slightly from the digital representation above. Color samples are available by request through your local Overhead Door™ Distributor. Not all colors are available on all models and panel designs, please see the chart below for detailed color availability by panel style.

Color Options by Panel Styles

	Standard			Vertical Short			Vertical Long	Long			Flush			Microgroove
Models	5720 (297)	5740 (194)	5760 (494)	5720 (296)	5740 (199)	5760 (497)	5740 (192)	5720 (295)	5740 (198)	5760 (496)	5720 (298)	5740 (195)	5760 (495)	5740 (196)
White	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Almond	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Desert Tan	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Sandstone	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔	✔
Terra Bronze		✔			✔		✔		✔			✔
Brown		✔	✔		✔	✔	✔		✔	✔		✔	✔
Forest Green		✔			✔		✔		✔			✔
Gray		✔			✔		✔		✔			✔
Black		✔	✔		✔	✔	✔		✔	✔		✔	✔
Beachwood Plank												✔
Cedar Plank												✔
Medium Oak Plank												✔
Carbon Oak Plank												✔
Golden Oak		✔	✔		✔	✔	✔		✔	✔
Walnut		✔	✔		✔	✔	✔		✔	✔
Mission Oak		✔	✔		✔	✔	✔		✔	✔
Silver												Smooth* ✔		✔
Dark Bronze												Smooth* ✔		✔
Black Frost												Smooth* ✔		✔

*Model 5740 with Modern Metallic finishes features a smooth, non-textured surface.

Features

5 Panel options available: Standard, Flush, Long, Microgroove, Vertical Short and Vertical Long
Thermacore® construction Provides a continuous layer of foamed-in-place, CFC-free polyurethane garage door insulation sandwiched between two layers of corrosion-resistant steel, for maximum thermal efficiency
Polyurethane garage door insulation Provides thermal efficiency U-factor* of .20(9.31 R-value**): Model 5720 U-factor* of .15 (12.76 R-value**): Model 5740 U-factor* of .10(17.5 R-value**): Model 5760
Multiple surface options Embossed wood grain, microgroove wave pattern and smooth
Steel backing For clean, finished interior appearance
Durable finish Hot-dipped galvanized steel with two coats of baked-on polyester paint
In-between section seals Seals provide superior resistance to the elements
Bulb-type bottom weatherseal Guards against wind and rain while providing a cushion when closing the door
Warranty 20-year limited warranty on Models 5720 Limited lifetime warranty on door Models 5740 and Model 5760 Residential garage door and opener system limited warranty(when purchased together) – features 3 year on components (see warranty for details)
*U-factor values are independently tested and verified per ANSI/DASMA 105. **Overhead Door™ Brand uses a calculated door section R-value for our insulated doors.

Wind load

Our WindStorm™ wind load rated system is available on selected products to meet regulations for a variety of wind speeds, ensuring your door is built to withstand varying wind conditions, including hurricane-force winds, and meet the most stringent local building codes.

Garage Door Windows

Window Styles

Windows is available on Standard, Flush, and Vertical Short panels.

Clear Short
Ashton 1
Cascade 1
Cathedral 1
Madison 1
Prairie 1
Ruston1
Sherwood 1
Stockford 1
Stockton 1
Waterton 1
Williamsburg 1 (4pc)
Winston 1
Williamsburg 1 (8pc)

Windows are available on Long, Flush, Vertical Long, and Vertical Short panels.

Clear Long
Ashton 2
Cathedral 2
Cascade 2
Prairie 2
Ruston 2
Sherwood 2
Somerton 2
Stockbridge 2 (3 lite)
Stockbridge 2 (4 lite)
Stockford 2
Stockton 2 (4 lite)
Stockton 2 (6 lite)
Stockton 2 (8 lite)
Stockton 2 (8 lite)Arch
Stockton 2 (12 lite)
Waterton 2
Williamsburg 2
Wyndbridge 2
Williamsburg 2 (4pc)

Carriage-style window trim. Available on Models 5740, Standard and Flush panels only.

Stockbridge
Stockton
Stockton Arch
Somerton
Wyndbridge Arch

Available on Flush and Microgroove panels in Modern Metallic finishes only. Modern Metallic finishes cannot be paired with other window options.

Narrow

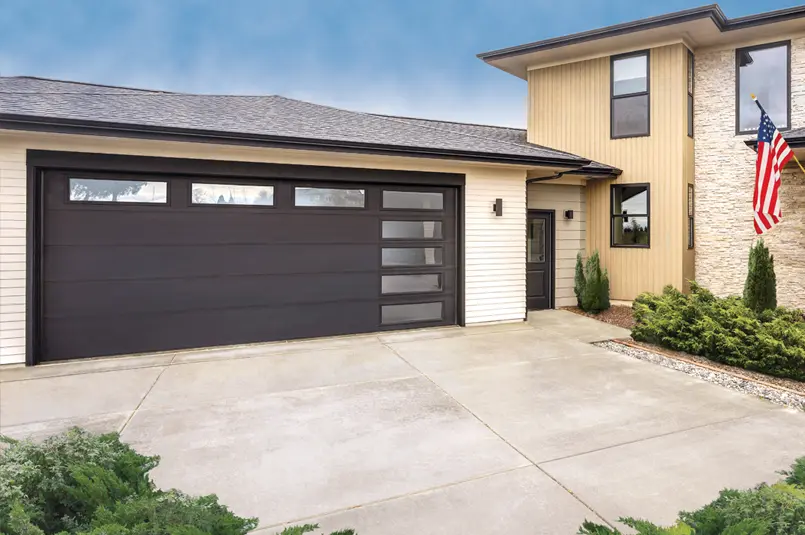

Optional Window Placement

Windows may be arranged vertically or horizontally on the Models 5740 and 5760. Windows must be Clear Short, Clear Long or Narrow. Windows placed in the bottom section of a door must have DSB 1/8″, tempered, or 1/2″ insulated glass.
